Beam Insertion Point

Function: This function is used to define the vertical offset of a beam's analytical line from its physical centroidal axis. Purpose: To accurately model the connection geometry of beam elements in the structural system. By adjusting the insertion point, users can align beams according to actual construction details—such as aligning the top of a beam with a reference plane—ensuring proper geometric representation and correct load transfer paths.

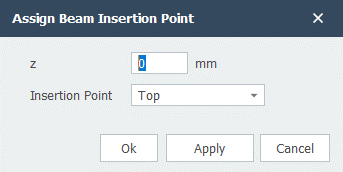

Operation: Select the target beam elements, then specify the offset value and select the reference direction (e.g., Top, Bottom). The analytical line of the beam will be repositioned vertically relative to the section centroid, while the physical cross-section remains unchanged.
